Price $12.50        More Information on this pump here.

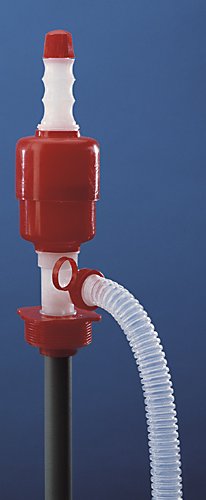

#372  Plastic Siphon Pumps - fits 55-gallon drums with 2" bung opening. Plastic Siphon Pumps are constructed of polyethylene. Dispensing rate of 1.5 pints per 5 strokes or 7 gallons per minute. Plastic siphon drum pumps can be used with water and light oil or other light fluids not corrosive to polyethylene. Siphons to a lower level or pumps to higher level.

Price  $11.20

#2134 Plastic Pump Hose. 4' X ¾” I.D. clear vinyl hose coupled on one end with a special thread (F) fitting and on the other with a discharge nozzle. For use with MODEL 360, 362, 363 and 365 plastic pumps.

#2136   Same as above only 6' long

Price $12.45

Price $4.50        More Information on this pump here.

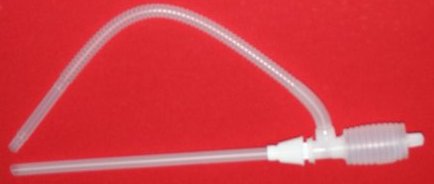

Our Lyn370 easy to use, polyethylene plastic siphon pumps siphon liquids to lower levels than the height at which the pump is installed. These are easy to prime & start within 6-7 strokes. Plastic siphon pump requires no further operation & keeps working in Auto position, emptying the media being pumped. All pumps are equipped with a Vent Cap on top. Opening the cap stops the discharge.  To dispense media at levels higher than the pump, plastic siphon pumps bellow needs to be continuously operated.  Our Lyn370 plastic siphon pump fits 5 gallon pails with 1-1/2" opening for use with pails.

Price   $33.75

 Nylon Chemical Resistant Drum Pump #363 w/o hose - fits 15 through 55-gallon drums with 2" bung opening. Constructed of nylon and nickel plated steel. This nylon chemical resistant drum pump can be used with paint thinners and general solvents. Includes bung adapter and discharge spout. Spout can be removed and special hose attached #2134. This chemical resistant drum pump dispenses approximately 8 oz. per stroke.

Price For This Drum Pump Chemical Resistant $29.00

 Drum Pump Chemical Resistant polypropylene # 360 w/o hose - fits 15 through 55-gallon drums with 2" bung opening. These chemical resistant drum pumps are constructed of polypropylene and nickel plated steel. This drum pump chemical resistant can be used with weak acids, anti-freeze, some mild chemicals, soaps and detergents. Includes bung adapter and discharge spout. Drum pump spout can be removed and special hose attached. This drum pump dispenses approximately 14 oz. per stroke.

More Information on this Polypropylene drum pump here

Price for pail pump   $28.00

Pail Pump Hand Operated  #352 - fits 5 through 6 1/2 gallon pails. Features a 48" vinyl discharge hose with curved metal spout at the discharge end, steel suction tube with plastic extension, standard bung adapter for external threads, special bung adapter for Rieke spout (spout which most pails have with metal ring around spout), and drain back for curved metal spout with standard bung adapter. This pail pump dispenses approximately 1 quart per 15 strokes.

Price $48.00

#365 Nylon drum Pump w/o hose - fits 15 through 55-gallon drums with 2" bung opening. Constructed of nylon, stainless steel, and special packing. This drum pump can be used with some stronger chemicals and solvents, such as lacquer thinner. Also suitable for edible products such as cooking oils. Includes bung adapter and discharge spout. Drum pump spout can be removed and special hose attached #2134. Dispenses approximately 14 oz. per stroke.

More Information on this nylon drum pump here

Price $48.35

#LH10122 Hand pump lever handle self priming with a plastic piston and body for excellent chemical resistance.. Fits 15-gallon drums through 55-gallon drums with 2" bung opening threads for plastic drums. Body constructed of Polypropylene with stainless steel rod to be used with chemicals, acids, alkali and other water based products. (compatibility chart available upon request). This drum pump works great as a acid pump. Removable spout, telescoping suction tube. Self-priming and self-venting.  This barrel pump dispenses approximately 12 ounces per stroke.

Price $42.35

#LH10121 Hand pump lever handle self priming with a plastic piston and body for excellent chemical resistance.. Fits 15-gallon drums through 55-gallon drums with 2" bung opening threads for plastic drums. Body constructed of Polypropylene with  steel rod to be used with alcohol, fuel oils, lubricants, and other water based products. (compatibility chart available upon request). Removable spout, telescoping suction tube. Self-priming and self-venting.  Dispenses approximately 12 ounces per stroke.

Price $58.35

LH10123 Hand pump lever handle self priming with a plastic piston and body for excellent chemical resistance.. Fits 15-gallon drums through 55-gallon drums with 2" bung opening threads for plastic drums. Body constructed of Ryton with stainless steel rod to be used with chemicals, acids including harsh  acids (nitric acid) , alkali and other water based products. (compatibility chart available upon request). Removable spout, telescoping suction tube. Self-priming and self-venting.  Dispenses approximately 12 ounces per stroke.     #LH10124 Contains Teflon component for enhanced resistance and longer operational life.    Price $68.35

Price $6.45

#36 Drum Pump Hose - ½” I.D. clear vinyl tubing coupled on one end with a garden hose thread (F) fitting. 5' long. For use with MODEL D-S, 338, 366, 381 and other drum pumps with garden hose threads.

Price $24.10

#366 Barrel Pump w/o hose - fits 15 through 55-gallon drums with 2" bung opening. Drum pump has zinc die-cast piston with brass piston ring. Includes bung adapter and curved discharge spout. This metal pump's discharge spout can be rotated 180 ° and can be removed to expose garden hose threaded outlet. #366 metal pump dispenses approximately 1-1/2 pints per stroke.

Price $30.15

# 381 Barrel Pump - fits 15 through 55-gallon drums with 2" bung opening. Has a zinc die-cast piston with two brass rings, steel telescoping tube assembly, Buna N Seals, plastic handle grip, and curved discharge spout with garden hose threads. Dispenses approximately 1 pint per stroke. Has adjusting nut on bung threads.

Price $24.10

#366T  Paint Thinner Pump - Barrel Pump w/o hose - fits 15 through 55-gallon drums with 2" bung opening. Drum pump has zinc die-cast piston with brass piston ring. Includes bung adapter and curved discharge spout. This metal pump's discharge spout can be rotated 180 ° and can be removed to expose garden hose threaded outlet. Dispenses approximately 1-1/2 pints per stroke. MODEL 366T drum pumps are unpainted and with lacquer thinner rod packing.

Price $38.50

Model 382
Drum Pump - same as MODEL 381 except is equipped with MODEL D01 non-drip attachment.  Features
• Powder coated silver gray steel construction with die cast aluminum head
• Heavy duty pump lever with rubber grip
• Includes non-drip attachment (New design)
• Garden hose threads on the head of the pump
• A Buna N seal is used under the packing nut as a wiper as the rod is lifted up
• Brass piston rings for long wear and oil additive resistance
• Will easily adapt from 15 to 55 gallon drums with telescoping pickup tube
• Unique variable stroke allows for easy transfer of varied viscosity fluids at a rate of 9 ½ to 15 ounces per stroke.    Attractive retail box
• Size: 3. x 7. x 21., weight 5 pounds
Recommended For
• Light oils (Maximum 40 weight)
• Kerosene, diesel, ATF and hydraulic fluid
• Not suitable for chemicals or water based fluids
Applications
• Shop use for dispensing into small measures or open containers
• Best used to dispense fluids from drums to small containers

Price  $62.50

#385

Stainless steel lift pump for 2” bung opening. 22 oz. per stroke capacity. Removable discharge spout to attach ¾” NPT hose (Model 2154) (hose Not included).

Price $30.50

# D-S Drum Pump w/o hose - fits 15 through 55-gallon drums with a 2" bung opening. Has a zinc die-cast piston with two brass piston rings, steel telescoping tube assembly, Buna N seals, plastic handle grip, and curved discharge spout with garden hose threads. Dispenses approximately 1 pint per stroke. This metal pump has a attractive red enamel finish.

Model D-S1  Price $ 33.50
Drum Pump - same as MODEL D-S except is equipped with MODEL D01 non-drip attachment.

Price $165.00

#975 An accurate (adjustable stroke) Piston Pump, with rack and pinion gearing, which dispenses lubricating oils and other non-corrosive liquids. Made from carbon steel, durable lightweight aluminum casting and Delrin® for its molded piston. The base is threaded 2" NPT to fit standard drum and tank opening. Includes a 2" bung adapter and a telescoping suction tube assembly for use with 15 through 55-gallon drums, swing return drain tube and lockable crank arm.

Price $22.50

Model L30-95N
Diaphragm Pump Hose. Black synthetic rubber hose 8' long. Coupled both ends with ¾ inch NPT (M) fittings. For use with MODEL 30A1 and 30A2 or gravity flow storage tanks.

Price $128.75
Model 30A1 Diaphragm Pump - fits15 through 55-gallon drums, or tanks with 2" bung opening. A double acting diaphragm pump for dispensing gasoline, diesel fuel, and similar petroleum products. Steel and aluminum telescoping tube assembly (22" to 39"), MODEL L30-95N 8' hose with straight through discharge nozzle, ¾” NPT inlet and outlet. Delivers approximately 1 gallon per 8 strokes.

Price$ 44.35

Model 960 Economy Rotary Pump - fits 15 through 55-gallon drums with 2" NPT bung opening. Dispenses gasoline, diesel fuel, ATF, Light oils, and hydraulic oil. Heavy-duty cast iron body with 3 piece steel suction tube 3/4 inch threaded discharge spout (M). Hose assemblies 2158 and 2178 available at extra cost. Dispenses approximately 7-1/2 gallons per 100 revolutions.

Price $78.05

Model 961

Rotary Pump - same as MODEL 960 rotary pump except includes MODEL 2178 hose assembly and MODEL 53 holster.

Price $61.10

MODEL 962 Economy Rotary Pump - fits 15 to 55 gallon drum w/2" bung opening. Dispensing gasoline, diesel fuel and similar light petroleum products. Includes telescoping tube assembly 2" NPT bung adapter, 3/4" threaded NPT discharge spout.

Price $92.05

Model 963 Rotary Pump - Fits 15 to 55 gallon drums with 2" bung opening. Dispenses gasoline, diesal fuel and similar light petroleum products. Constructed of cast iron. Includes telescoping tube assembly 2" NPT bung adapter, 3/4" threaded NPT discharge spout, 8 ft. X 3/4" rubber hose nozzle. This metal pump dispenses 7.5 gallons per 100 revolutions.

Price $12.00

Model 2154 Rotary Pump Hose. 4 feet of ¾’ clear vinyl tubing coupled on one end ¾” NPT (F). For use with MODEL 950, 952 and 1002 rotary pumps.

Model 2156=6' long Price $14.50

Price $28.00

Model 2178 Rotary Pump Hose. 8' X ¾” I.D. synthetic rubber hose coupled ¾” NPT (F) one end and with a discharge nozzle on the other. For use with MODEL 950, 952, 1007 and 1002 rotary pumps.

Price $85.75

Model 1003 Rotary Pump - Same as MODEL 1002 but includes MODEL 2178 Hose and MODEL 53 nozzle holster.

Model 1002

Price $58.25
Rotary Pump - fits 15 through 55-gallon drums with 2" bung opening. A rotary vane type pump for dispensing gasoline, diesel fuel, and similar light petroleum products. Heavy-duty cast iron body, dual vanes, and bung adapter. Discharge spout threaded ¾-inch NPT (Male). Hose assemblies 2154, 2156, 2158, and 2178 available at extra cost. Metal pump dispenses approximately 7-½ gallons per 100 revolutions.

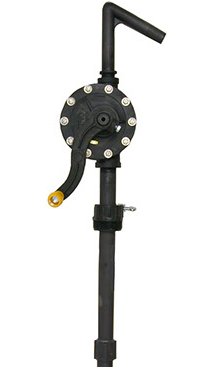

Plastic Rotary Pump Model #1014

For pumping petroleum and chlorinated solvents.  Works well for water based chemicals.  Features:  Light weight and corrosion resistant, Polypropylene construction, Teflon seals, Bung adapter included.  Dispenses 8 oz. per revolution.  Use for water, light oil ( up to 30 wt.), antifreeze, windshield washer fluid, methanol, and chlorinated solvents. Package size 16" x 12" x 6".  Weight 5 pounds.  Price $70.00

Information Sheet On 1014 Rotary Pump

Gear driven for fast and easy transfers of light oils, diesel, alcohol, antifreeze,  freezer cleaners, and windshield washer fluid.  High flow 25 gpm, empty a 55 gallon drum in 2 minutes.  Heavy-Duty construction features a lightweight aluminum alloy body and steel vanes.  Approximately 1 quart per revolution.  Weight 13 lbs.

Price $156.75

Model #LH10190

Lever Handle Metal Pump for High Viscosity Liquids

An easily operated metal pump with die-cast Zinc alloy body, ideal for high viscosity liquids such as paraffin, gear oil, etc.  Suction Tube telescopes to fit various containers.  Includes curved spout and high angle spout. Dispenses approximately 1 gallon per 8 strokes.  Fits 15 to 55 gallon drums and other containers with a 2"NPT opening.

Price  $39.50

Model # 155

Drum Pump - fits 55-gallon drums with 2" bung opening. Includes pump, bung adapter, and 5 feet of clear vinyl hose with curved discharge nozzle. Can be furnished with a MODEL 1500 universal pint meter by special order at additional cost.

Price  $34.00

Model 103

Flexible Hose Pump put hose in any container and pump to another.

Transfer/Suction Pump - hand operated pump for transferring liquids from one container to another. Has 8' of clear vinyl hose. Double check valve permits drawing of liquids from a container and discharging into another. Has Viton® O-Ring.

Price $25.50

Models # PH10130  &  #PH10080

Pull Up Handle Pumps 16 ounces or 8 ounces per stroke.

#PH10130 = 16 OUNCES,   #PH10080 = 8 OUNCES

#PH10130 is a fast-flow all steel pump for soaps, waxes and other non-corrosives.  Removable spout threaded for 3/4" garden hose fitting.  Price $29.50

#PH10080 is an economical chrome plated steel pump with polyethylene internal parts used as a mild soap pump, wax pump, paint thinner pump, etc.  For 15 - 55 gallon drums.

Price $27.50

Rotary Drum Pump Stainless Steel

chemical resistant  #11219

Rotary Drum Pump Stainless Steel For pumping Fuels and Harsh Chemicals. This Rotary Drum Pump Stainless Steel has stainless steel construction with teflon vanes and shaft seal, Stainless Steel springs, 3 piece Stainless Steel pickup tube, 3/4 inch Stainless Steel Hose barb on spout, Aluminum handle, Rubber water deflector, Stainless Steel bung adapter, Stainless Steel hardware. Discounts for 5 or more, discounts will show when ordering.

  Price  $353.50

Stainless Steel Drum Pump Chemical Resistant

Lever Action 10 ounces per full pump # 10193

Stainless steel lever action pump for 2 inch bung opening. 10 ounces per stroke capacity. Features a stainless steel body with teflon seals. Removable discharge spout to attach 3/4 inch NPT hose (hose not included). Use for mild acids, detergents, anti-freeze, windshield washer fluid. Hose ordered separately. Discounts for 5, larger for 10 or more. Will show discounts when ordering.

Price $157.50

Phone Toll Free 1-800-366-5022

Email for any Information click here

Dial totals 8 pints on the pint meter and 16 quarts on the quart meter.  Meters are graduated in 1/4 pint for pint meter & 1/4 quart for quart meter.  3.5" easy to read dial.  1/2" NPT threads on inlet and outlet.

Price for #1500 Pint meter $207.50

Price for #1505 Quart meter $230.00
