Most types of drum pumps or barrel pumps, (solvent pump, acid pump, paint thinner pump, soap pump, oil pump, bleach pump, chlorine pump)

Many types of liquid transfer pumps, (plastic siphon drum pumps, metal pumps, stainless steel pumps, ryton rotary pumps, HDPE pumps, chemical resistant pups).

Lyn Distributing    Lyn Distributing, LLC BBB Business Review

Phone 1-800-366-5022 or 1-801-295-5022

Fax 1-801-292-6196

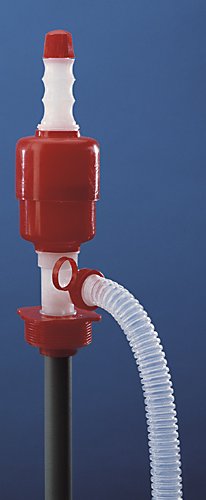

Model # CR369 Plastic siphon drum pump chemical resistant

Plastic siphon drum pump chemical resistant 6.5 GPM flow white color. Drum pump chemical resistant CR369 heavy duty. Fits 15 gallon to 55 gallon containers. Polyethylene construction with discharge hose. Suction type is manual up and down piston type. Use to transfer these liquids Gasoline, Diesel, Kerosene, Toluene, Thinner, Nitric acid up to 35 percent, Hydrochloric acid, Sulfuric acid up to 35 percent, Acetic acid up to 35 percent, Water Etc. The total pump length is 46 inches. The suction tube length is 33.7 inches with a inner diameter of .81 inches. The discharge tube length is 52 inches with a inner diameter of .80 inches. Additional discharge tubes may be purchased. Item number 369HOSE. This plastic siphon drum pump chemical resistant is a long lasting pump compared to most siphon pumps. Discounts for 6 or more plastic siphon drum pumps chemical resistant CR369 heavy duty chemical resistant.

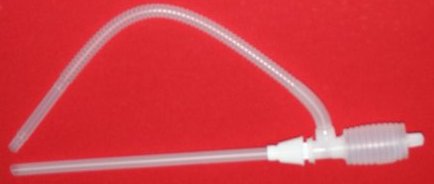

Model # PHSP14S chemical resistant siphon pump




Plastic hand siphon pump chemical resistant siphons liquids to lower levels than the height at which the pump is installed. These are easy to prime and start within 6 to 7 squeezing strokes. This plastic hand siphon pump requires no further operation and keeps working in auto position emptying the media being pumped. All plastic hand siphon pumps are equipped with a VENT CAP on top. Opening the cap stops the discharge. To dispense media at levels higher than the pump plastic hand siphon pumps bellow needs to be continuously operated. Plastic hand siphon pumps are supplied complete with flexible corrugated discharge tube. Our PHSP14S plastic siphon pump fits 5 gallon pails with as small as .65 inch opening for use with pails bottles or small tanks. Pumps at 1.8 gallon per minute flow. Recommended for use with Solvents Thinner Toluene Acids less than 35 percent Gasoline Kerosene Light oils Diesel oils Chemical insecticides Water Alcoholic drinks Etc. and other liquids compatible with pump materials of construction. Plastic hand siphon pump should only be used with light weight materials that are compatible with pump material polyethylene. Do not use with any media not compatible with materials used in the pump construction. These pumps must never be used with concentrated acids over 35 percent or Acetone and Benzene etc. Discharge tube length is 21 inches and total pump height is 20 inches. Pump bellows are 2 inches in diameter. Suction tube outside diameter is .62 inch.

        More Information on this pump here.

Model #372 Plastic siphon drum pump heavy duty

Plastic Siphon drum pumps - fits 55-gallon drums with 2" bung opening. Plastic siphon drum pumps are constructed of polyethylene. Dispensing rate of 1.5 pints per 5 strokes or 7 gallons per minute. Plastic siphon drum pumps can be used with water and light oil or other light fluids not corrosive to polyethylene. Siphons to a lower level or pumps to higher level. Heavy duty plastic siphon drum pump with 52 inch discharge hose length. Discounts for 6 or more, discounts will show when ordering.



Model #2134 Plastic Pump Hose. 4' X ¾” I.D. clear vinyl hose coupled on one end with a special thread (F) fitting and on the other with a discharge nozzle. For use with MODEL 360, 362, 363 and 365 plastic pumps.

Model #2136   Same hose as above only 6' long



        More Information on this pump here.

Model # 370 plastic siphon pump

Our Lyn370 easy to use, polyethylene plastic siphon pumps siphon liquids to lower levels than the height at which the pump is installed. These are easy to prime & start within 6-7 strokes. Plastic siphon pump requires no further operation & keeps working in Auto position, emptying the media being pumped. All pumps are equipped with a Vent Cap on top. Opening the cap stops the discharge.  To dispense media at levels higher than the pump, plastic siphon pumps bellow needs to be continuously operated.  Our Lyn370 plastic siphon pump fits 5 gallon pails with 1-1/2" opening for use with pails. May be used with fish aquarium

Model # 363  Nylon chemical resistant pump

 Nylon Chemical Resistant Drum Pump #363 w/o hose - fits 15 through 55-gallon drums with 2" bung opening. Constructed of nylon and nickel plated steel. This nylon chemical resistant drum pump can be used with paint thinners and general solvents. Includes bung adapter and discharge spout. Spout can be removed and special hose attached #2134 or #2136. This chemical resistant drum pump dispenses approximately 8 oz. per stroke.

Drum Pump Chemical Resistant

Model # 360 Drum Pump Chemical Resistant polypropylene

 Drum Pump Chemical Resistant polypropylene # 360 w/o hose - fits 15 through 55-gallon drums with 2" bung opening. These chemical resistant drum pumps are constructed of polypropylene and nickel plated steel. This drum pump chemical resistant can be used with weak acids, anti-freeze, some mild chemicals, soaps and detergents. Includes bung adapter and discharge spout. Drum pump spout can be removed and special hose attached. This drum pump dispenses approximately 14 oz. per stroke. Drum pump spout can be removed and special hose attached #2134.

More Information on this Polypropylene drum pump here

Model 352

Model # 352  pail pump

Pail Pump Hand Operated  #352 - fits 5 through 6 1/2 gallon pails. Features a 48" vinyl discharge hose with curved metal spout at the discharge end, steel suction tube with plastic extension, standard bung adapter for external threads, special bung adapter for Rieke spout (spout which most pails have with metal ring around spout), and drain back for curved metal spout with standard bung adapter. This pail pump dispenses approximately 1 quart per 15 strokes.







Model #365

 Nylon drum Pump w/o hose - fits 15 through 55-gallon drums with 2" bung opening. Constructed of nylon, stainless steel, and special packing. This drum pump can be used with some stronger chemicals and solvents, such as lacquer thinner. Also suitable for edible products such as cooking oils. Includes bung adapter and discharge spout. Drum pump spout can be removed and special hose attached #2134. Dispenses approximately 14 oz. per stroke.

More Information on this nylon drum pump here



Model # LH10122 or P490S

Hand pump lever handle self priming with a plastic piston and body for excellent chemical resistance.. Fits 15-gallon drums through 55-gallon drums with 2" bung opening threads for plastic drums. Body constructed of Polypropylene with stainless steel rod to be used with chemicals, acids, alkali and other water based products. (compatibility chart available upon request). This drum pump works great as a acid pump. Removable spout, telescoping suction tube. Self-priming and self-venting.  This barrel pump dispenses approximately 12 ounces per stroke.



Model # LH10121 or P490

Hand pump lever handle self priming with a plastic piston and body for excellent chemical resistance.. Fits 15-gallon drums through 55-gallon drums with 2" bung opening threads for plastic drums. Body constructed of Polypropylene with  steel rod to be used with alcohol, fuel oils, lubricants, and other water based products. (compatibility chart available upon request). Removable spout, telescoping suction tube. Self-priming and self-venting.  Dispenses approximately 12 ounces per stroke.



Model   LH10123 or R490S

Hand pump lever handle self priming with a plastic piston and body for excellent chemical resistance.. Fits 15-gallon drums through 55-gallon drums with 2" bung opening threads for plastic drums. Body constructed of Ryton with stainless steel rod to be used with chemicals, acids including harsh  acids (nitric acid) , alkali and other water based products. (compatibility chart available upon request). Removable spout, telescoping suction tube. Self-priming and self-venting.  Dispenses approximately 12 ounces per stroke.

Model #LH10124 or R490ST  Contains Teflon component for enhanced resistance and longer operational life.





Model #36 Drum Pump Hose

 ½” I.D. clear vinyl tubing coupled on one end with a garden hose thread (F) fitting. 5' long.

For use with MODEL D-S, 338, 366, 381 and other drum pumps with garden hose threads.



Model #366

Barrel Pump w/o hose - fits 15 through 55-gallon drums with 2" bung opening. Drum pump has zinc die-cast piston with brass piston ring. Includes bung adapter and curved discharge spout. This metal pump's discharge spout can be rotated 180 ° and can be removed to expose garden hose threaded outlet. #366 metal pump dispenses approximately 1-1/2 pints per stroke.



Model # 381

Barrel Pump - fits 15 through 55-gallon drums with 2" bung opening. Has a zinc die-cast piston with two brass rings, steel telescoping tube assembly, Buna N Seals, plastic handle grip, and curved discharge spout with garden hose threads. Dispenses approximately 1 pint per stroke. Has adjusting nut on bung threads.



Model #366T  Paint Thinner Pump

Barrel Pump w/o hose - fits 15 through 55-gallon drums with 2" bung opening. Drum pump has zinc die-cast piston with brass piston ring. Includes bung adapter and curved discharge spout. This metal pump's discharge spout can be rotated 180 ° and can be removed to expose garden hose threaded outlet. Dispenses approximately 1-1/2 pints per stroke. MODEL 366T drum pumps are unpainted and with lacquer thinner rod packing.



Model 382
Drum Pump - same as MODEL 381 except is equipped with MODEL D01 non-drip attachment.  Features
• Powder coated silver gray steel construction with die cast aluminum head
• Heavy duty pump lever with rubber grip
• Includes non-drip attachment (New design)
• Garden hose threads on the head of the pump
• A Buna N seal is used under the packing nut as a wiper as the rod is lifted up
• Brass piston rings for long wear and oil additive resistance
• Will easily adapt from 15 to 55 gallon drums with telescoping pickup tube
• Unique variable stroke allows for easy transfer of varied viscosity fluids at a rate of 9 ½ to 15 ounces per stroke.    Attractive retail box
• Size: 3. x 7. x 21., weight 5 pounds
Recommended For
• Light oils (Maximum 40 weight)
• Kerosene, diesel, ATF and hydraulic fluid
• Not suitable for chemicals or water based fluids
Applications
• Shop use for dispensing into small measures or open containers
• Best used to dispense fluids from drums to small containers



Model #387

Stainless steel drum pump lift pump for 2” bung opening. 16 oz. per stroke capacity.

Will fit 15 gallon drums to 55 gallon drums.

Removable discharge spout to attach ¾”  garden hose threaded hose end.

Stainless steel drum pump lift action type pump for dispensing mild acids detergents antifreeze windshield fluids MEK chlorinated solvents and acetone. 316 stainless steel construction

5 feet hose for this pump  N0. 36

8 feet hose for this pump  N0. 78



Model # D-S Drum Pump

Drum Pump w/o hose - fits 15 through 55-gallon drums with a 2" bung opening. Has a zinc die-cast piston with two brass piston rings, steel telescoping tube assembly, Buna N seals, plastic handle grip, and curved discharge spout with garden hose threads. Dispenses approximately 1 pint per stroke. This metal pump has a attractive red enamel finish.

Model D-S1
Drum Pump - same as MODEL D-S except is equipped with MODEL D01 non-drip attachment.



Model #975 Pump

 An accurate (adjustable stroke) Piston Pump, with rack and pinion gearing, which dispenses lubricating oils and other non-corrosive liquids. Made from carbon steel, durable lightweight aluminum casting and Delrin® for its molded piston. The base is threaded 2" NPT to fit standard drum and tank opening. Includes a 2" bung adapter and a telescoping suction tube assembly for use with 15 through 55-gallon drums, swing return drain tube and lockable crank arm.



Model L30-95N 8' hose with nozzle
Diaphragm Pump Hose. Black synthetic rubber hose 8' long. Coupled both ends with ¾ inch NPT (M) fittings. For use with MODEL 30A1 and 30A2 or gravity flow storage tanks.




Model 30A1  Lockable drum pump complete with hose and nozzle.
Diaphragm Pump - fits15 through 55-gallon drums, or tanks with 2" bung opening. A double acting diaphragm pump for dispensing gasoline, diesel fuel, and similar petroleum products. Steel and aluminum telescoping tube assembly (22" to 39"), MODEL L30-95N 8' hose with straight through discharge nozzle, ¾” NPT inlet and outlet. Delivers approximately 1 gallon per 8 strokes.



Model 960 Economy Rotary Pump - fits 15 through 55-gallon drums with 2" NPT bung opening. Dispenses gasoline, diesel fuel, ATF, Light oils, and hydraulic oil. Heavy-duty cast iron body with 3 piece steel suction tube 3/4 inch threaded discharge spout (M). Hose assemblies 2158 and 2178 available at extra cost. Dispenses approximately 7-1/2 gallons per 100 revolutions.



Model 961

Rotary Pump - same as MODEL 960 rotary pump except includes MODEL 2178 hose assembly and MODEL 53 holster.

MODEL # 962 Economy Rotary Pump

Economy Rotary Pump - fits 15 to 55 gallon drum w/2" bung opening. Dispensing gasoline, diesel fuel and similar light petroleum products. Includes telescoping tube assembly 2" NPT bung adapter, 3/4" threaded NPT discharge spout.

Model # 963 Rotary Pump

Rotary Pump - Fits 15 to 55 gallon drums with 2" bung opening. Dispenses gasoline, diesal fuel and similar light petroleum products. Constructed of cast iron. Includes telescoping tube assembly 2" NPT bung adapter, 3/4" threaded NPT discharge spout, 8 ft. X 3/4" rubber hose nozzle. This metal pump dispenses 7.5 gallons per 100 revolutions.

Model # 2154 Rotary pump hose 4 feet

 Rotary Pump Hose. 4 feet of ¾’ clear vinyl tubing coupled on one end ¾” NPT (F). For use with MODEL 950, 952 and 1002 rotary pumps.

Model 2156=6' long Price

Model # 2178 pump hose with nozzle

 Rotary Pump Hose. 8' X ¾” I.D. synthetic rubber hose coupled ¾” NPT (F) one end and with a discharge nozzle on the other. For use with MODEL 950, 952, 1007 and 1002 rotary pumps.



Model 1003 Rotary Pump - Same as MODEL 1002 but includes MODEL 2178 Hose and MODEL 53 nozzle holster.



Model 1002


Rotary Pump - fits 15 through 55-gallon drums with 2" bung opening. A rotary vane type pump for dispensing gasoline, diesel fuel, and similar light petroleum products. Heavy-duty cast iron body, dual vanes, and bung adapter. Discharge spout threaded ¾-inch NPT (Male). Hose assemblies 2154, 2156, 2158, and 2178 available at extra cost. Metal pump dispenses approximately 7-½ gallons per 100 revolutions.

Plastic Rotary Pump Model #1014

For pumping petroleum and chlorinated solvents light acids and alkali.  Works well for water based chemicals.  Features:  Light weight and corrosion resistant, Polypropylene construction, PPS (RYTON) Vane, PTFE (Teflon ) seal. Bung adapter included.  Dispenses 8 oz. per revolution.  Use for water, light oil ( up to 30 wt.), antifreeze, windshield washer fluid, methanol, and chlorinated solvents. Package size 16" x 12" x 6".  Weight 5 pounds.



Information Sheet On 1014 Rotary Pump

High Flow Gear Driven Rotary Pump Model #1009

Gear driven for fast and easy transfers of light oils, diesel, alcohol, antifreeze,  freezer cleaners, and windshield washer fluid.  High flow 25 gpm, empty a 55 gallon drum in 2 minutes.  Heavy-Duty construction features a lightweight aluminum alloy body and steel vanes.  Approximately 1 quart per revolution.  Weight 13 lbs.



Model #LH10190

Lever Handle Metal Pump for High Viscosity Liquids

An easily operated metal pump with die-cast Zinc alloy body, ideal for high viscosity liquids such as paraffin, gear oil, etc.  Suction Tube telescopes to fit various containers.  Includes curved spout and high angle spout. Dispenses approximately 1 gallon per 8 strokes.  Fits 15 to 55 gallon drums and other containers with a 2"NPT opening.



Model # 155

Drum Pump - fits 55-gallon drums with 2" bung opening. Includes pump, bung adapter, and 5 feet of clear vinyl hose with curved discharge nozzle. Can be furnished with a MODEL 1500 universal pint meter by special order at additional cost.

Model # 103

Flexible Hose Pump put hose in any container and pump to another.

Transfer/Suction Pump - hand operated pump for transferring liquids from one container to another. Has 8' of clear vinyl hose. Double check valve permits drawing of liquids from a container and discharging into another. Has Viton® O-Ring.



Models # PH10130  &  #PH10080

Pull Up Handle Pumps 16 ounces or 8 ounces per stroke.

#PH10130 = 16 OUNCES,   #PH10080 = 8 OUNCES

#PH10130 is a fast-flow all steel pump for soaps, waxes and other non-corrosives.  Removable spout threaded for 3/4" garden hose fitting.  Price

#PH10080 is an economical chrome plated steel pump with polyethylene internal parts used as a mild soap pump, wax pump, paint thinner pump, etc.  For 15 - 55 gallon drums.



Rotary Drum Pump Stainless Steel chemical resistant 11219

Rotary Drum Pump Stainless Steel

chemical resistant  #11219

Rotary Drum Pump Stainless Steel For pumping Fuels and Harsh Chemicals. This Rotary Drum Pump Stainless Steel has stainless steel construction with teflon vanes and shaft seal, Stainless Steel springs, 3 piece Stainless Steel pickup tube, 3/4 inch Stainless Steel Hose barb on spout, Aluminum handle, Rubber water deflector, Stainless Steel bung adapter, Stainless Steel hardware. Discounts for 5 or more, discounts will show when ordering.



Stainless Steel Drum Pump Lever Action

Stainless Steel Drum Pump Chemical Resistant

Lever Action 10 ounces per full pump # 10193

Stainless steel lever action pump for 2 inch bung opening. 10 ounces per stroke capacity. Features a stainless steel body with teflon seals. Removable discharge spout to attach 3/4 inch NPT hose (hose not included). Use for mild acids, detergents, anti-freeze, windshield washer fluid. Hose ordered separately. Discounts for 5, larger for 10 or more. Will show discounts when ordering.

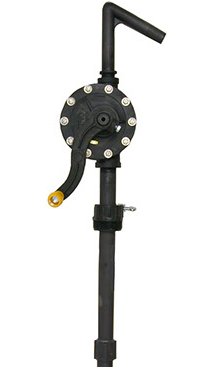

Rotary Drum Pump Chemical Resistant Grey Ryton Body with Teflon seals and Teflon Vane

Model # RP90RT or 10256

Rotary Drum Pump Chemical Resistant With Teflon seal, Teflon vane  Ryton suction tube. With Teflon seal Teflon vane  Ryton suction tube. Application liquids acid alkali gasoline diesel machine oil water alcohol thinner and other chemical liquids. Resists mild <20% nitric acid with concentration of up to 20 percent. 1” Hose barb outlet, 1.25” O.D. Pick up tube, pumps 1 US gallon per 16 revolutions.

Model # RP90HDPE or 10240 Bleach or chlorine Chemical resistant pump Rotary



Rotary Drum Pump bleach or chlorice chemical resistant with HDPE Teflon vane HDPE spout HDPE suction tube Polyethylene flange seals Viton shaft seal. Application liquids Bleach or chlorine, water and other chemicals compatible with HDPE. For industrial use. 1” Hose barb outlet, 1.25” O.D. Pick up tube, pumps 1 US gallon per 16 revolutions.

Rotary Drum Pump Chemical Resistant Grey Ryton Body with FKM (Vitron) seals and PPS (RYTON) Vane

Model # 1014R

Rotary Drum Pump Chemical Resistant With FKM (Vitron™) seals, PPS (RYTON™) vane  Ryton suction tube. With  Ryton suction tube. Application liquids acid, alkali, gasoline, diesel, machine oil, water, alcohol, thinner, chlorinated solvents, aromatic and aliphatic hydrocarbons and other chemical liquids. Resists mild phosphoric and hydrochloric acid with concentration of up to 20 percent. 1” Hose barb outlet, 1.25” O.D. Pick up tube, pumps 1 US gallon per 16 revolutions.

Pail Pump Chrome Plated Steel Pump for 5 or 6 gallon pails No.10120. This pail pump is an economical chrome plated steel pump with polyethylene internal parts. May be used as a mild soap pump, liquid wax pump, paint thinner pump, etc. Dispenses 4 ounces of liquid per full stroke.

Lyn Distributing Home Page



Phone Toll Free 1-800-366-5022



Email for any Information click here

Meters for Pumps Model #1500 Pints & #1505 Quarts

Dial totals 8 pints on the pint meter and 16 quarts on the quart meter.  Meters are graduated in 1/4 pint for pint meter & 1/4 quart for quart meter.  3.5" easy to read dial.  1/2" NPT threads on inlet and outlet.

Price for #1500 Pint meter

Price for #1505 Quart meter

Hose Reels Drum Cradles
Grease Pumps & Guns                    Chemical Resistance Chart Air Operated Oil Pumps
